Parking Sensor
Ultrasonic parking sensor system with LED display, alarm light and voice alerts for caravans and trailers.
1
Variants
1
Market
Yes
Custom Build
Catalog
All Variants (1)
Parking Sensor
- System
- Ultrasonic blind-spot warning
- Voltage
- 12V-24V DC (9V-35V wide)
- Detection range
- 0.3-3.0 m / 0.3-5.0 m
- Detection angle
- 60°
- Response time
- 0.2 s
- Accuracy
- 0.1 m
- Rating
- IP68, vehicle grade
- Power consumption
- 1.0 W avg / 1.2 W max
- Operating temp
- -30°C to 80°C

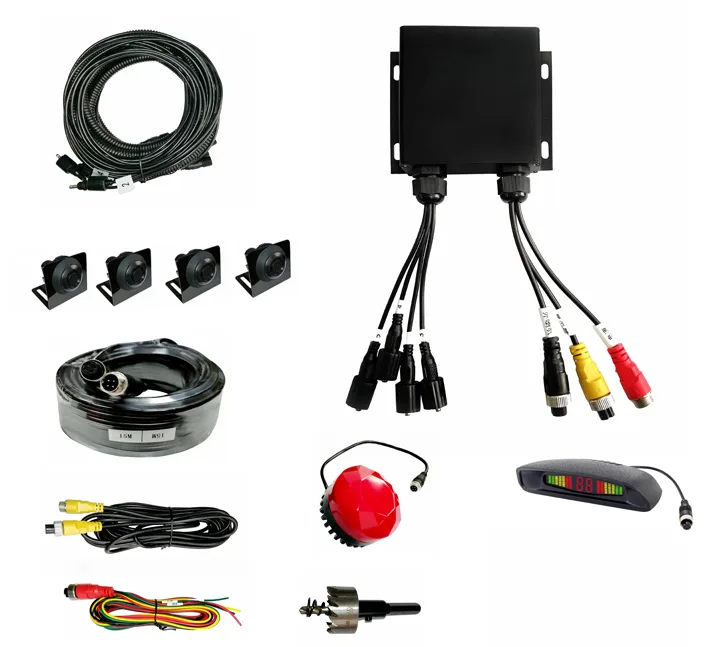

- Kit contents (4 sensors)
- Control unit ×1, sensors ×4, alarm light ×1, LED display ×1, power cable ×1, extension cables ×3, 27 mm hole saw ×1, screws ×4, adhesive pad ×1
- Kit contents (8 sensors)
- Sensors ×8, front + rear sensor extensions, rear sensor brackets ×4, plus the 4-sensor items
- Warning light modes
- 5 (slow flash / fast flash / steady / left-to-right / right-to-left)
- Voice alerts
- 13 Mandarin voice alerts (start, left & right turn, reverse, fault, blind-zone and danger warnings) plus alarm tones

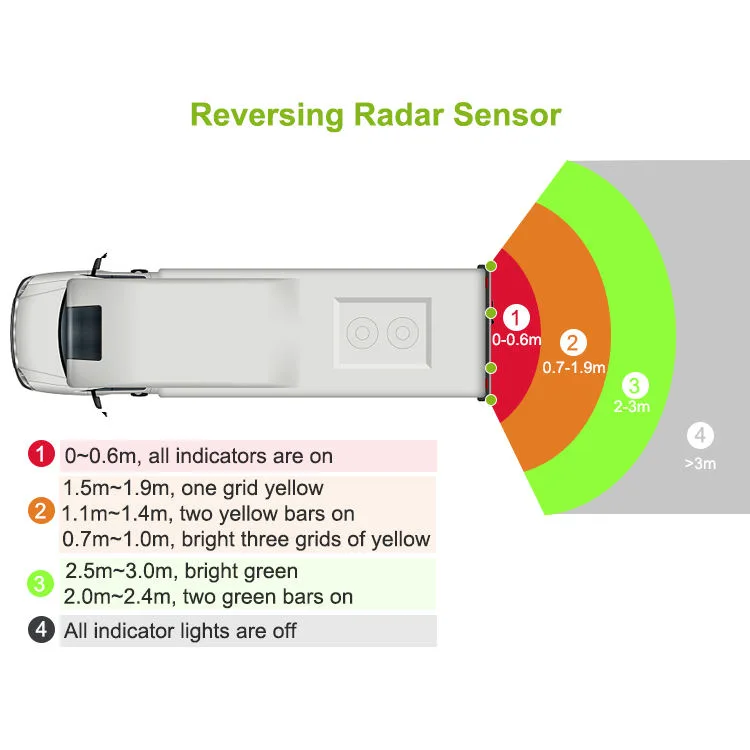

- Alarm zones
- 5 distance bands: continuous tone <0.5 m, intermittent 1:3 / 1:6 / 1:12, silent in the safe zone (3.0 m or 5.0 m version)
- Warranty
- 12 months
